N Female Square Panel Mount

About N Female Square Panel Mount

Basic Product Description (General Use)

N Female to N Female Adapter RF Coaxial Connector

This high-quality N Female to N Female RF adapter enables seamless connection between two N Male coaxial cables. Designed with precision-machined brass and nickel-plated for corrosion resistance, this adapter ensures stable signal transmission across a wide frequency range. Ideal for RF, antenna, WiFi, telecom, and test equipment applications.

Detailed Technical Description (Professional/Industrial Use)

N-Type Female to N-Type Female Coaxial RF Adapter 50 Ohm, DC to 11 GHz

This N Female to N Female adapter features a robust design for high-performance RF connections. It is constructed from durable brass with a nickel-plated finish and gold-plated contacts to ensure minimal signal loss and excellent conductivity. Suitable for applications up to 11 GHz, this 50-ohm adapter is ideal for wireless infrastructure, antenna systems, satellite communication, and lab testing environments.

Specifications:

• Connector Type: N Female to N Female

• Impedance: 50 Ohm

• Frequency Range: DC to 11 GHz

• Body Material: Nickel-plated Brass

• Contact: Gold-plated Brass

• Temperature Range: -55C to +165C

• Mounting: Inline or Panel-Mount (flanged version)

Panel-Mount / Flanged Version Description

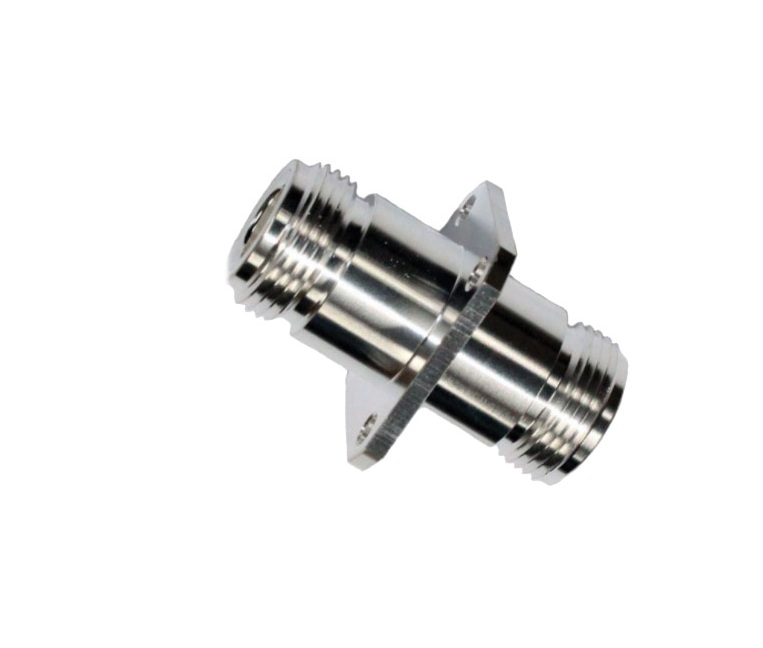

N-Type Female to Female Adapter with 25mm Square Flange 4-Hole Panel Mount

This panel-mount RF adapter is designed with a 25mm square flange for secure and reliable installation in enclosures and rack systems. It offers a stable N Female to N Female interface with high performance over a wide frequency range. Suitable for telecom, networking, RF, microwave, and instrumentation applications.

Highlights:

• 25mm x 25mm square flange with 4-hole mount

• Strong mechanical connection with minimal VSWR

• Frequency support: DC11 GHz

• Suitable for indoor and outdoor use (IP67 optional)

Short E-Commerce Product Snippet (SEO-Optimized)

N Female to N Female RF Adapter | 50 Ohm | DC11 GHz | Panel Mount or Inline

Connect N-type cables effortlessly with this high-performance N Female to N Female adapter. Supports up to 11 GHz, ideal for antenna, telecom, or RF testing use.
